역삼투압 방식은 제약, 식품 및 음료, 전자 제품과 같이 고품질의 물을 필요로 하는 산업에서 널리 사용됩니다. 역삼투압 시 스템의 효율성과 수명은 사용되는 필터 요소의 품질에 따라 달라집니다. 표준 이하의 필터 요소는 역삼투압 시스템의 성능 과 수명에 상당한 위험을 초래합니다.
이 사례 연구에서는 실제 사례를 통해 역삼투압 시스템에서 표준 이하의 필터 요소를 사용하는 것과 관련된 비용 위험을 살 펴보겠습니다.
배경:
제약 산업 의 한 제조 회사는 역삼투압 시스템의 빈번한 고장으로 인해 생산 중단 시간과 상당한 재정적 손실을 겪었습니다.
역삼투압 시스템에는 물에서 불순물과 오염 물질을 제거하도록 설계된 필터 요소가 장착되어 물이 요구되는 품질 기준을 충족하는지 확인합니다.
필터 요소의 정기적인 교체에도 불구하고 역삼투압 시스템은 계속해서 자주 고장을 일으켜 제약 회사에 생산 중단 시간과 재정적 손실을 초래했습니다.
도전
자체 점검 결과 불량 필터 엘리먼트를 사용하여 시스템의 역삼투막을 보호하기 위해 모든 불순물과 오염 물질을 차단할 수 없다는 사실을 마침내 발견했습니다.

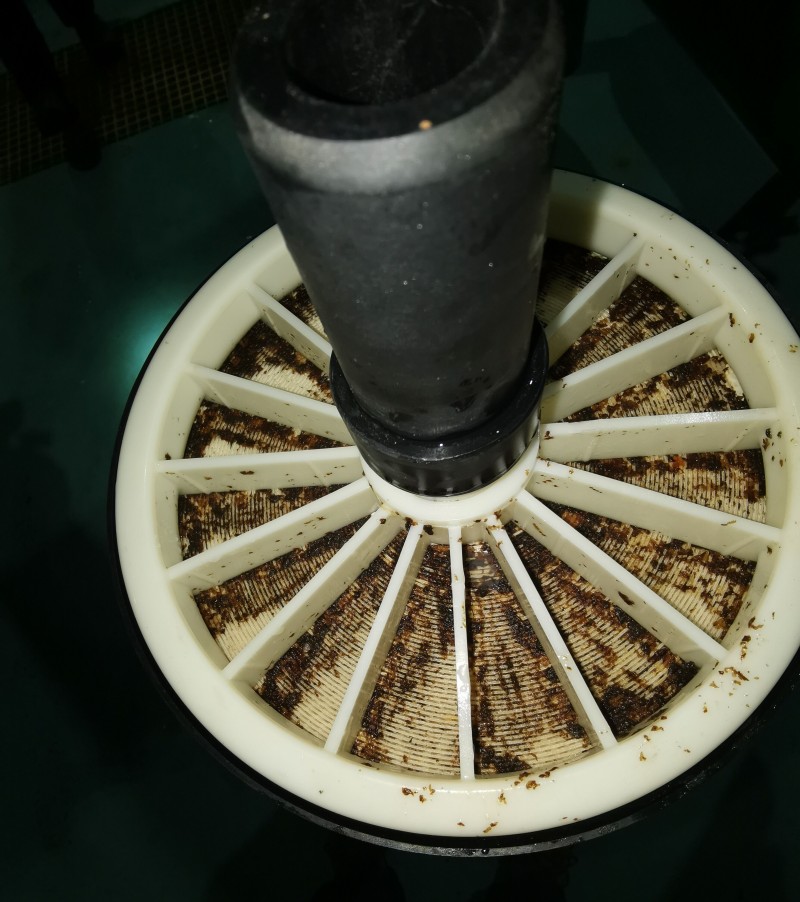

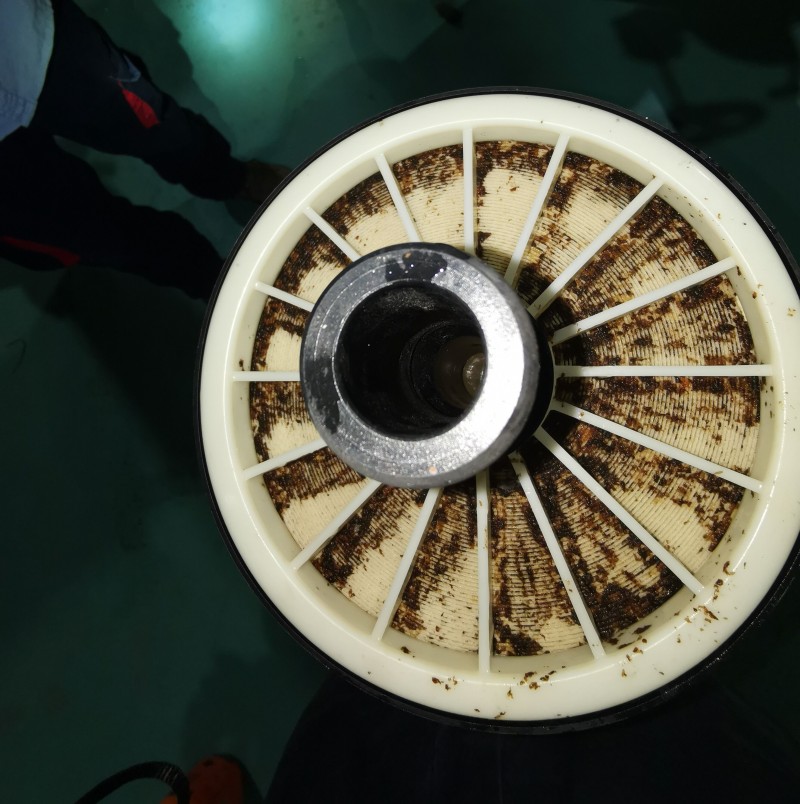

이것은 현장에서 찍은 사진입니다. 이 사진에서 우리는 명백한 검은 오염 물질, 불순물을 볼 수 있습니다.
RO 멤브레인이 이러한 불순물에 의해 차단되고 고유량 카트리지 필터를 통해 차단된 데리스로 인해 역삼투압 시스템이 이제 종료됩니다
회사는 이전의 기준 이하를 대체하고 역삼투압 시스템의 효과적인 작동을 보장하기 위해 고품질의 자격을 갖춘 필터 요소 를 제공할 수 있는 회사를 찾았습니다.
해결책
이 문제를 해결하기 위해 제약 회사는 Brother Filtration에 와서 자격이 없는 모든 필터 요소를 요구 사항을 충족하는 고품 질 필터 요소로 교체했습니다. 새로운 필터 요소는 물의 모든 불순물과 오염 물질을 차단하여 역삼투압 시스템에 파편과 입 자가 쌓이는 것을 방지했습니다.

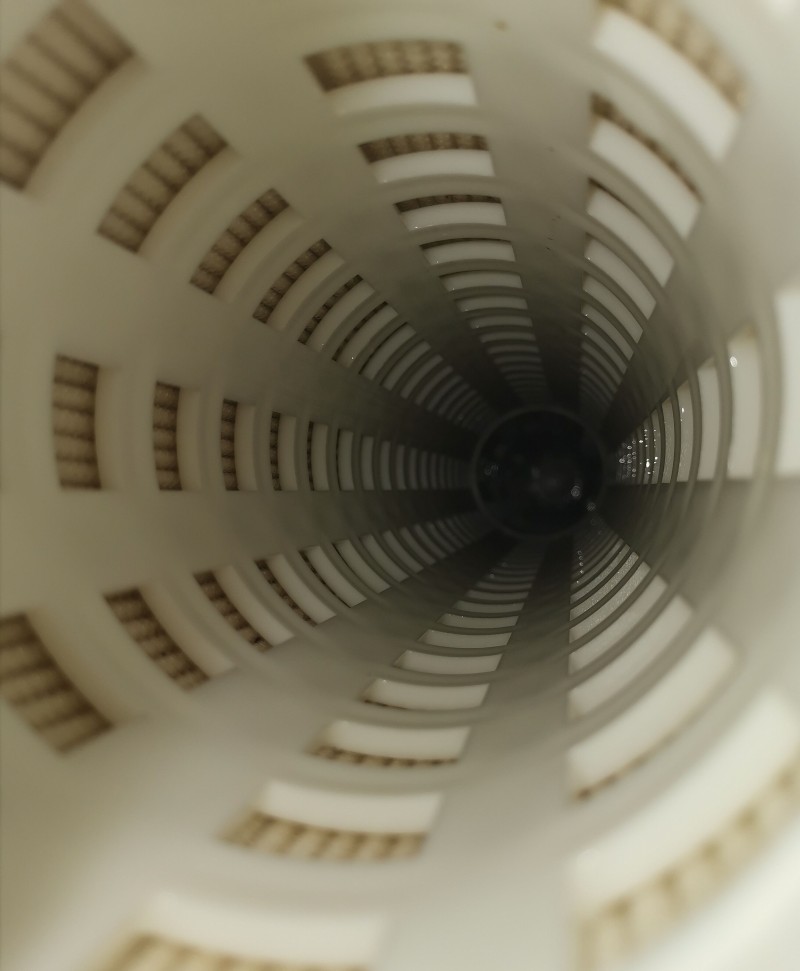

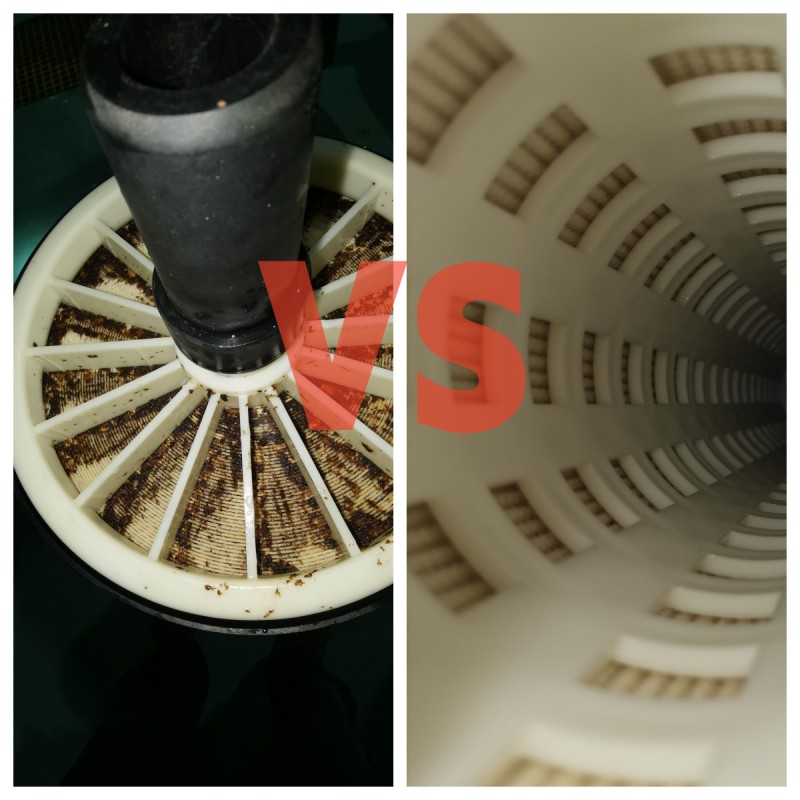

실제로 하나의 적격 고유량 카트리지 필터는 위의 그림과 같습니다. 내부 레이어는 흰색이고 깨끗합니다. 즉, 모든 불순물 과 파편이 멤브레인 내부에 있음을 의미합니다. 내부 레이어는 “검은색” 색상이 비정상적인 경우 마지막 보호 레이어입니다. “흰색 레이어”가 정상적인 경우 카트리지 필터가 사전 여과 역할을 잘 수행합니다.
제약 회사는 또한 역삼투압 시스템이 이제 최적의 수준으로 작동하면서 최종 제품의 품질이 개선되는 것을 확인했습니다. 우리는 이 회사가 권장 간격으로 필터 요소를 교체할 수 있도록 정기적인 유지 관리 일정을 구현해야 한다고 제안했습니다.
비용 분석:
제약회사의 경우 역삼투압 방식의 비용은 20,000 USD였습니다. 품질이 좋지 않은 60인치 필터 요소는 60달러이고 좋은 품 질의 필터 요소는 80달러입니다. 저품질 필터 엘리먼트의 수명을 1개월로 가정하면 30개가 소모됩니다. 좋은 품질의 필터 요소 수명이 45일이라고 가정하면 30개가 소모됩니다.
품질이 좋지 않은 필터 요소의 경우 1년 동안 필터 요소를 교체하는 비용은 21,600 USD(60 USD X 30 pieces X 12개월)입니다. 좋은 품질의 필터 엘리먼트를 사용하면 1년 동안 필터 엘리먼트를 교체하는 비용은 19,200 USD(80 USD X 30 pieces X 8개월) 입니다. 이는 연간 2400 USD의 비용 절감을 나타냅니다.
Brother Filtration에서 제공하는 필터 요소가 적합한 이유
Brother Filtration 은 산업, 화학, 제약, 석유 및 가스 시장 부문의 요구 사항을 충족하는 광범위한 필터 요소를 제공합니다. 우리 회사의 필터 요소는 또한 높고 일관된 필터 미디어 보유 효율성을 요구하는 중요한 요구 사항을 충족합니다.

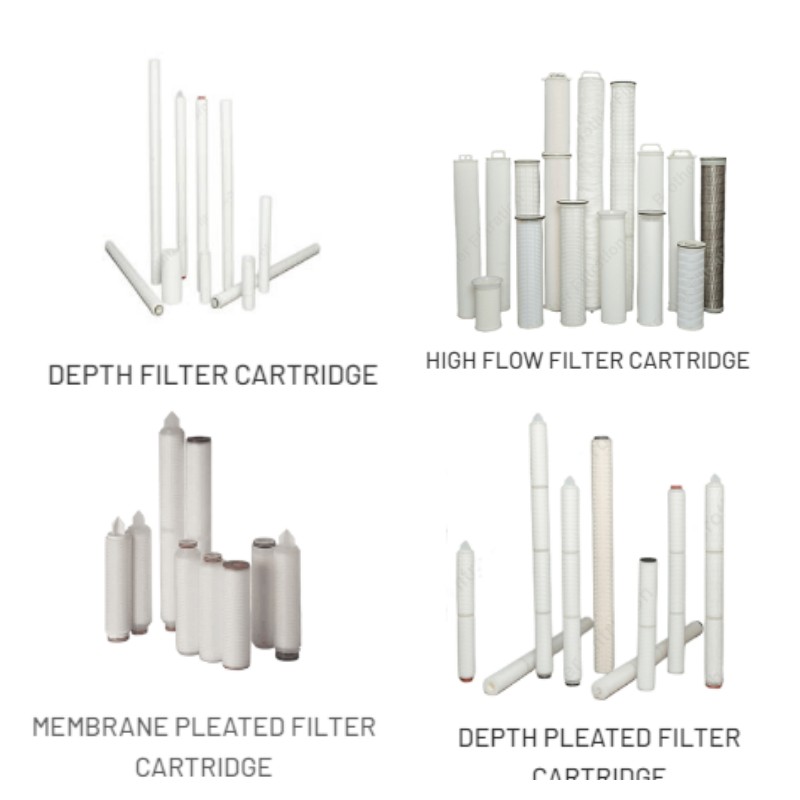

아래는 깊이 필터 카트리지, 고유량 필터 카트리지, 멤브레인 필터 카트리지 및 깊이 주름 필터 카트리지 와 같은 본사 제품의 일부입니다.
적합한 필터 요소를 선택할 때 필터 요소의 원료 및 생산 공정을 고려해야 합니다. 물론 관련 제품 인증도 확인해야 합니다.

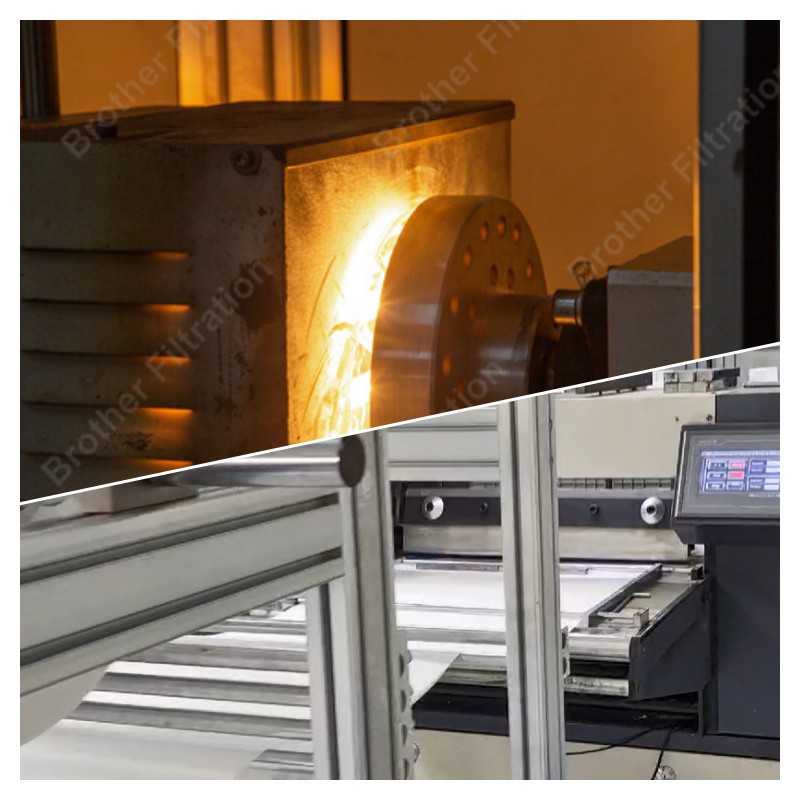

우리는 우리 자신의 공장을 가지고 있으며 다른 필터 요소에는 제공된 제품의 고품질을 보장할 수 있는 다른 생산 작업장이 장착되어 있습니다. 동시에 우리의 생산 기술(용접, 주름, 연마 등)은 가장 앞선 수준이며 제품의 품질을 보장할 수 있는 표 준을 충족합니다. 우리의 생산 작업장도 다층 인증을 통과했습니다.
결론:
Brother Filtration은 자격이 없는 필터 요소의 비용 위험이 매우 높으며 필수 표준을 충족하는 고품질 필터 요소를 사용하 는 것이 특히 중요하다는 점을 다시 한 번 강조하고 싶습니다. 단기 비용 할인이 장기적 손실로 이어지지 않도록 하십시오. 같은 문제가 발생하면 바로 문의해주시기 바랍니다!
